Single row table with a snapshot representation of XML, JSON or text/plain.

Node Type: snapshot

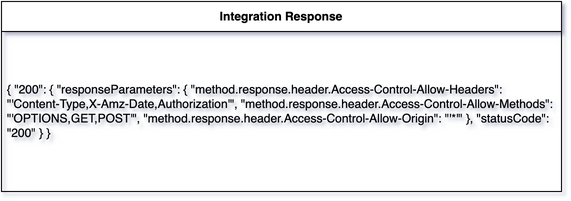

Rendering:

lambda

Code Snippet:

# given
mcd = MultiCloudDiagrams()
mcd.read_coords_from_file('docs/docs/core-components/output/drawio/snapshot.drawio')

snapshot = json.dumps(
    {
        "200": {
            "responseParameters": {
                "method.response.header.Access-Control-Allow-Headers": "'Content-Type,X-Amz-Date,Authorization'",
                "method.response.header.Access-Control-Allow-Methods": "'OPTIONS,GET,POST'",
                "method.response.header.Access-Control-Allow-Origin": "'*'"
            },
            "statusCode": "200"
        }
    }, indent=4)

# when
mcd.add_snapshot(table_name='Integration Response', snapshot=snapshot)

drawio snapshot vertex:

<mxCell id="vertex:Integration Response:list" parent="1" vertex="1">
    <mxGeometry width="560" height="190" as="geometry" x="-180"/>
</mxCell>

Advanced for Geeks:

Style:

style="swimlane;fontStyle=0;childLayout=stackLayout;horizontal=1;startSize=30;horizontalStack=0;resizeParent=1;resizeParentMax=0;resizeLast=0;collapsible=1;marginBottom=0;whiteSpace=wrap;html=1;"
attributevalue
childLayoutstackLayout
collapsible1
fontStyle0
horizontal1
horizontalStack0
html1
marginBottom0
resizeLast0
resizeParent1
resizeParentMax0
startSize30
swimlane
whiteSpacewrap
