Amazon Chime SDK

New (v0.3.32)

Table of contents

1. Node Type: chime_sdk
2. Rendering:
3. Code Snippet:
4. drawio chime_sdk vertex:
5. Advanced for Geeks:
   1. Style:
   2. Vertex size:
   3. Full XML dump:
   4. drawio file:

---

Node Type: chime_sdk

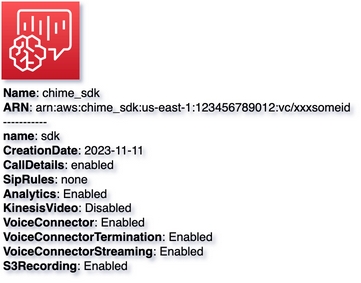

Rendering:

Code Snippet:

# given
mcd = MultiCloudDiagrams()

# when
chime_arn = 'arn:aws:chime_sdk:us-east-1:123456789012:vc/xxxsomeid'

metadata = {
    'name': 'sdk',
    'CreationDate': '2023-11-11',
    'CallDetails': "enabled",
    'SipRules': "none",
    'Analytics': 'Enabled',
    'KinesisVideo': 'Disabled',
    'VoiceConnector': 'Enabled',
    'VoiceConnectorTermination': 'Enabled',
    'VoiceConnectorStreaming': 'Enabled',
    'S3Recording': 'Enabled'
}

mcd.add_vertex(node_id=chime_arn, node_name='chime_sdk', node_type='chime_sdk', metadata=metadata)

drawio chime_sdk vertex:

<mxCell id="vertex:chime_sdk:arn:aws:chime_sdk:us-east-1:123456789012:vc/xxxsomeid" parent="1" vertex="1">
    <mxGeometry width="78" height="78" as="geometry"/>
</mxCell>

---

Advanced for Geeks:

Style:

style="sketch=0;outlineConnect=0;gradientColor=#FF5252;gradientDirection=north;fillColor=#C7131F;strokeColor=#ffffff;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;shape=mxgraph.aws4.resourceIcon;resIcon=mxgraph.aws4.chime_sdk;"

attribute	value
align	left
aspect	fixed
dashed	0
fillColor	#C7131F
fontSize	12
fontStyle	0
gradientColor	#FF5252
gradientDirection	north
html	1
outlineConnect	0
resIcon	mxgraph.aws4.chime_sdk
shape	mxgraph.aws4.resourceIcon
sketch	0
strokeColor	#ffffff
verticalAlign	top
verticalLabelPosition	bottom

Vertex size:

attribute	value
width	78
height	78

Full XML dump:

<mxfile host="multicloud-diagrams" agent="PIP package multicloud-diagrams. Generate resources in draw.io compatible format for Cloud infrastructure. Copyrights @ Roman Tsypuk 2023. MIT license." type="MultiCloud">
    <diagram id="diagram_1" name="AWS components">
        <mxGraphModel dx="1015" dy="661" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="850" pageHeight="1100" math="0" shadow="1">
            <root>
                <mxCell id="0"/>
                <mxCell id="1" parent="0"/>
                <mxCell id="vertex:chime_sdk:arn:aws:chime_sdk:us-east-1:123456789012:vc/xxxsomeid" value="&lt;b&gt;Name&lt;/b&gt;: chime_sdk&lt;BR&gt;&lt;b&gt;ARN&lt;/b&gt;: arn:aws:chime_sdk:us-east-1:123456789012:vc/xxxsomeid&lt;BR&gt;-----------&lt;BR&gt;&lt;b&gt;name&lt;/b&gt;: sdk&lt;BR&gt;&lt;b&gt;CreationDate&lt;/b&gt;: 2023-11-11&lt;BR&gt;&lt;b&gt;CallDetails&lt;/b&gt;: enabled&lt;BR&gt;&lt;b&gt;SipRules&lt;/b&gt;: none&lt;BR&gt;&lt;b&gt;Analytics&lt;/b&gt;: Enabled&lt;BR&gt;&lt;b&gt;KinesisVideo&lt;/b&gt;: Disabled&lt;BR&gt;&lt;b&gt;VoiceConnector&lt;/b&gt;: Enabled&lt;BR&gt;&lt;b&gt;VoiceConnectorTermination&lt;/b&gt;: Enabled&lt;BR&gt;&lt;b&gt;VoiceConnectorStreaming&lt;/b&gt;: Enabled&lt;BR&gt;&lt;b&gt;S3Recording&lt;/b&gt;: Enabled" style="sketch=0;outlineConnect=0;gradientColor=#FF5252;gradientDirection=north;fillColor=#C7131F;strokeColor=#ffffff;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;shape=mxgraph.aws4.resourceIcon;resIcon=mxgraph.aws4.chime_sdk;" parent="1" vertex="1">
                    <mxGeometry width="78" height="78" as="geometry"/>
                </mxCell>
            </root>
        </mxGraphModel>
    </diagram>
</mxfile>

drawio file:

Download generated chime_sdk.drawio:
