Created: 2024-01-15 | Updated: 2024-05-17

Elastic Search Service

New (v0.3.22)

Table of contents

1. Node Type: elasticsearch_service
2. Rendering:
3. Code Snippet:
4. drawio elasticsearch_service vertex:
5. Advanced for Geeks:
   1. Style:
   2. Vertex size:
   3. Full XML dump:
   4. drawio file:

---

Node Type: elasticsearch_service

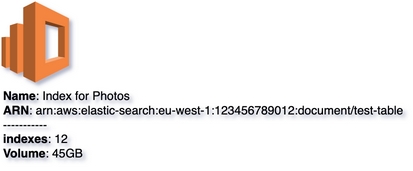

Rendering:

Code Snippet:

# given
mcd = MultiCloudDiagrams()

# when
elastic_arn = 'arn:aws:elastic-search:eu-west-1:123456789012:document/test-table'
elastic_name = 'Index for Photos'
metadata = {
    "indexes": 12,
    "Volume": "45GB",
}
mcd.add_vertex(node_id=elastic_arn, node_name=elastic_name, node_type='elasticsearch_service', metadata=metadata)

drawio elasticsearch_service vertex:

<mxCell id="vertex:elasticsearch_service:arn:aws:elastic-search:eu-west-1:123456789012:document/test-table" parent="1" vertex="1">
    <mxGeometry width="67.5" height="81" as="geometry"/>
</mxCell>

---

Advanced for Geeks:

Style:

style="outlineConnect=0;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;shape=mxgraph.aws3.elasticsearch_service;fillColor=#F58534;gradientColor=none;"

attribute	value
align	left
dashed	0
fillColor	#F58534
gradientColor	none
html	1
outlineConnect	0
shape	mxgraph.aws3.elasticsearch_service
verticalAlign	top
verticalLabelPosition	bottom

Vertex size:

attribute	value
width	67.5
height	81

Full XML dump:

<mxfile host="multicloud-diagrams" agent="PIP package multicloud-diagrams. Generate resources in draw.io compatible format for Cloud infrastructure. Copyrights @ Roman Tsypuk 2023. MIT license." type="MultiCloud">
    <diagram id="diagram_1" name="AWS components">
        <mxGraphModel dx="1015" dy="661" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="850" pageHeight="1100" math="0" shadow="1">
            <root>
                <mxCell id="0"/>
                <mxCell id="1" parent="0"/>
                <mxCell id="vertex:elasticsearch_service:arn:aws:elastic-search:eu-west-1:123456789012:document/test-table" value="&lt;b&gt;Name&lt;/b&gt;: Index for Photos&lt;BR&gt;&lt;b&gt;ARN&lt;/b&gt;: arn:aws:elastic-search:eu-west-1:123456789012:document/test-table&lt;BR&gt;-----------&lt;BR&gt;&lt;b&gt;indexes&lt;/b&gt;: 12&lt;BR&gt;&lt;b&gt;Volume&lt;/b&gt;: 45GB" style="outlineConnect=0;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;shape=mxgraph.aws3.elasticsearch_service;fillColor=#F58534;gradientColor=none;" parent="1" vertex="1">
                    <mxGeometry width="67.5" height="81" as="geometry"/>
                </mxCell>
            </root>
        </mxGraphModel>
    </diagram>
</mxfile>

drawio file:

Download generated elasticsearch_service.drawio:

Download
