Customizing Edge

New (v0.3.13)

Table of contents

1. Style Object, Predefined Connections, Generic Customizer
2. Predefined Connections:
   1. Adding standard edge connection
   2. Bidirectional Connection
   3. Unidirectional Connection
3. Generic Customizer:
   1. Dashed Connection
   2. Stroked Colored Connection
   3. Rounded Connection
   4. EdgeStyle Connection
4. Add additional note to existing Label of existing Edge

---

Style Object, Predefined Connections, Generic Customizer

When passing style parameter, we can customize the representation of particular Edge. Here is the list of most widely used parameters of style (there are much mode of them, you can customize any).

style = {
    'dashed': '1',
    'strokeColor': '#FF3333',
    'strokeWidth': '3',
    'orthogonalLoop': '1',
    'edgeStyle': 'orthogonalEdgeStyle',
    'curved': '1',
    'startArrow': 'oval',
    'endArrow': 'classicThin',
}

multicloud-diagrams provides top level functions to apply defined styles based on name. Also, there is generic function add_connection that has style parameter to customize any style.

Predefined Connections:

Adding standard edge connection

Code Snippet:

# given
mcd = MultiCloudDiagrams()
input_file_previous_version = 'docs/docs/core-components/output/drawio/connection.drawio'
mcd.read_coords_from_file(input_file_previous_version)

# when
lambda_id = mcd.add_vertex(node_id="arn:aws:lambda:eu-west-1:123456789012:function:nolabel",
                           node_name='no-label',
                           node_type='lambda_function',
                           style={'noLabel': '1'})

dynamo_id = mcd.add_vertex(node_id="arn:aws:dynamodb:eu-west-1:123456789012:table/prod-dynamo-table",
                           node_name='no-label',
                           node_type='dynamo',
                           style={'noLabel': '1'})
mcd.add_link(src_node_id=lambda_id, dst_node_id=dynamo_id, action=['GET data'])

Rendering:

Bidirectional Connection

Code Snippet:

# given-when
self.mcd.add_bidirectional_link(src_node_id=self.lambda_id, dst_node_id=self.dynamo_id, action=['GET data'])

Rendering:

Unidirectional Connection

Code Snippet:

# given-when
self.mcd.add_unidirectional_link(src_node_id=self.lambda_id, dst_node_id=self.dynamo_id, action=['GET data'])

Rendering:

Generic Customizer:

Dashed Connection

Code Snippet:

# given
style = {
    'dashed': '1',
}

# when
self.mcd.add_connection(src_node_id=self.lambda_id,
                        dst_node_id=self.dynamo_id,
                        edge_style=style,
                        labels=['GET data'])

Rendering:

Stroked Colored Connection

Code Snippet:

# given
style = {
    'strokeColor': '#FF3333',
    'strokeWidth': '3'
}

# when
self.mcd.add_connection(src_node_id=self.lambda_id,
                        dst_node_id=self.dynamo_id,
                        edge_style=style,
                        labels=['GET data'])

Rendering:

Rounded Connection

Code Snippet:

# given
style = {
    'orthogonalLoop': '1',
    'edgeStyle': 'orthogonalEdgeStyle',
    'curved': '1',
    'startArrow': 'oval',
    'endArrow': 'classicThin'
}

# when
self.mcd.add_connection(src_node_id=self.lambda_id,
                        dst_node_id=self.dynamo_id,
                        edge_style=style,
                        labels=['GET data'])

Rendering:

EdgeStyle Connection

Code Snippet:

# given
style = {
    'edgeStyle': 'elbowEdgeStyle'
}

# when
self.mcd.add_connection(src_node_id=self.lambda_id,
                        dst_node_id=self.dynamo_id,
                        edge_style=style,
                        labels=['GET data'])

Rendering:

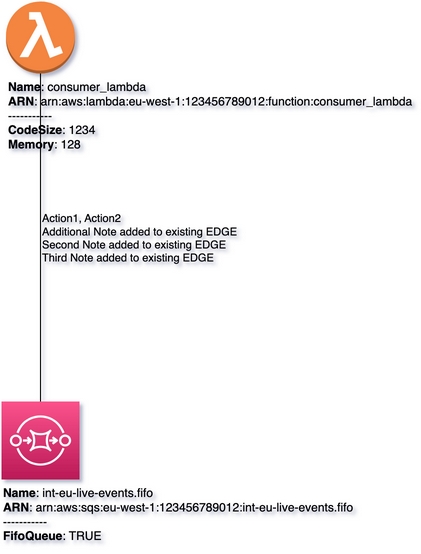

Add additional note to existing Label of existing Edge

Code Snippet:

# given
mcd = MultiCloudDiagrams()
mcd.read_coords_from_file('docs/docs/core-components/output/drawio/note.drawio')

sqs_arn = 'arn:aws:sqs:eu-west-1:123456789012:int-eu-live-events.fifo'
sqs_metadata = {
    "FifoQueue": "TRUE",
}
func_arn = 'arn:aws:lambda:eu-west-1:123456789012:function:consumer_lambda'
func_metadata = {
    "CodeSize": 1234,
    "Memory": 128,
}

# when
mcd.add_vertex(node_id=func_arn, node_name='consumer_lambda', node_type='lambda_function', metadata=func_metadata)
mcd.add_vertex(node_id=sqs_arn, node_name='int-eu-live-events.fifo', node_type='sqs', metadata=sqs_metadata)
existing_edge = mcd.add_link(src_node_id=f'lambda_function:{func_arn}', dst_node_id=f'sqs:{sqs_arn}', action=['Action1, Action2'])
mcd.add_note_to_existing_edge('Additional Note added to existing EDGE', existing_edge)
mcd.add_note_to_existing_edge('Second Note added to existing EDGE', existing_edge)
mcd.add_note_to_existing_edge('Third Note added to existing EDGE', existing_edge)

Rendering:
