Created: 2024-01-07 | Updated: 2024-05-17

Elastic Container Service

New (v0.3.17)

Table of contents

1. Node Type: ecs
2. Rendering:
3. Code Snippet:
4. drawio ecs vertex:
5. Advanced for Geeks:
   1. Style:
   2. Vertex size:
   3. Full XML dump:
   4. drawio file:

---

Node Type: ecs

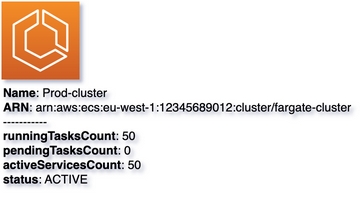

Rendering:

Code Snippet:

# given
mcd = MultiCloudDiagrams()

# when
ecs_arn = 'arn:aws:ecs:eu-west-1:12345689012:cluster/fargate-cluster'
ecs_name = 'Prod-cluster'
metadata = {
    "runningTasksCount": 50,
    "pendingTasksCount": 0,
    "activeServicesCount": 50,
    "status": "ACTIVE",
}
mcd.add_vertex(node_id=ecs_arn, node_name=ecs_name, node_type='ecs', metadata=metadata)

drawio ecs vertex:

<mxCell id="vertex:ecs:arn:aws:ecs:eu-west-1:12345689012:cluster/fargate-cluster" parent="1" vertex="1">
    <mxGeometry width="78" height="78" as="geometry"/>
</mxCell>

---

Advanced for Geeks:

Style:

style="outlineConnect=0;gradientColor=#F78E04;gradientDirection=north;fillColor=#D05C17;strokeColor=#ffffff;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;shape=mxgraph.aws4.resourceIcon;resIcon=mxgraph.aws4.ecs;"

attribute	value
align	left
aspect	fixed
dashed	0
fillColor	#D05C17
fontSize	12
fontStyle	0
gradientColor	#F78E04
gradientDirection	north
html	1
outlineConnect	0
resIcon	mxgraph.aws4.ecs
shape	mxgraph.aws4.resourceIcon
strokeColor	#ffffff
verticalAlign	top
verticalLabelPosition	bottom

Vertex size:

attribute	value
width	78
height	78

Full XML dump:

<mxfile host="multicloud-diagrams" agent="PIP package multicloud-diagrams. Generate resources in draw.io compatible format for Cloud infrastructure. Copyrights @ Roman Tsypuk 2023. MIT license." type="MultiCloud">
    <diagram id="diagram_1" name="AWS components">
        <mxGraphModel dx="1015" dy="661" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="850" pageHeight="1100" math="0" shadow="1">
            <root>
                <mxCell id="0"/>
                <mxCell id="1" parent="0"/>
                <mxCell id="vertex:ecs:arn:aws:ecs:eu-west-1:12345689012:cluster/fargate-cluster" value="&lt;b&gt;Name&lt;/b&gt;: Prod-cluster&lt;BR&gt;&lt;b&gt;ARN&lt;/b&gt;: arn:aws:ecs:eu-west-1:12345689012:cluster/fargate-cluster&lt;BR&gt;-----------&lt;BR&gt;&lt;b&gt;runningTasksCount&lt;/b&gt;: 50&lt;BR&gt;&lt;b&gt;pendingTasksCount&lt;/b&gt;: 0&lt;BR&gt;&lt;b&gt;activeServicesCount&lt;/b&gt;: 50&lt;BR&gt;&lt;b&gt;status&lt;/b&gt;: ACTIVE" style="outlineConnect=0;gradientColor=#F78E04;gradientDirection=north;fillColor=#D05C17;strokeColor=#ffffff;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;shape=mxgraph.aws4.resourceIcon;resIcon=mxgraph.aws4.ecs;" parent="1" vertex="1">
                    <mxGeometry width="78" height="78" as="geometry"/>
                </mxCell>
            </root>
        </mxGraphModel>
    </diagram>
</mxfile>

drawio file:

Download generated ecs.drawio:

Download
