Created: 2024-02-29 | Updated: 2024-05-17

Amazon Neptune Managed Service

New (v0.3.33)

Table of contents

1. Node Type: neptune
2. Rendering:
3. Code Snippet:
4. drawio neptune vertex:
5. Advanced for Geeks:
   1. Style:
   2. Vertex size:
   3. Full XML dump:
   4. drawio file:

---

Node Type: neptune

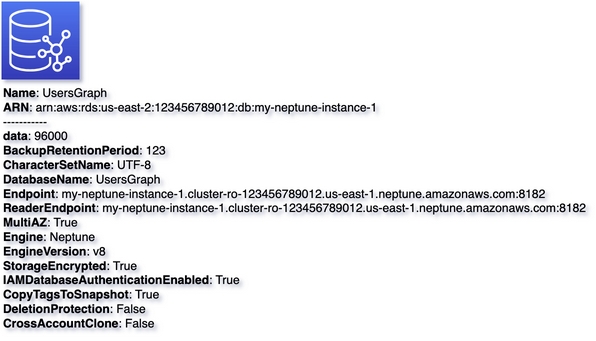

Rendering:

Code Snippet:

# given
mcd = MultiCloudDiagrams()

# when
neptune_arn = 'arn:aws:rds:us-east-2:123456789012:db:my-neptune-instance-1'
neptune_name = 'UsersGraph'
metadata = {
    "data": 96000,
    'BackupRetentionPeriod': 123,
    'CharacterSetName': 'UTF-8',
    'DatabaseName': 'UsersGraph',
    'Endpoint': 'my-neptune-instance-1.cluster-ro-123456789012.us-east-1.neptune.amazonaws.com:8182',
    'ReaderEndpoint': 'my-neptune-instance-1.cluster-ro-123456789012.us-east-1.neptune.amazonaws.com:8182',
    'MultiAZ': True,
    'Engine': 'Neptune',
    'EngineVersion': 'v8',
    'StorageEncrypted': True,
    'IAMDatabaseAuthenticationEnabled': True,
    'CopyTagsToSnapshot': True,
    'DeletionProtection': False,
    'CrossAccountClone': False,
}
mcd.add_vertex(node_id=neptune_arn, node_name=neptune_name, node_type='neptune', metadata=metadata)

drawio neptune vertex:

<mxCell id="vertex:neptune:arn:aws:rds:us-east-2:123456789012:db:my-neptune-instance-1" parent="1" vertex="1">
    <mxGeometry width="78" height="78" as="geometry"/>
</mxCell>

---

Advanced for Geeks:

Style:

style="sketch=0;outlineConnect=0;gradientColor=#4D72F3;gradientDirection=north;fillColor=#3334B9;strokeColor=#ffffff;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;shape=mxgraph.aws4.resourceIcon;resIcon=mxgraph.aws4.neptune;"

attribute	value
align	left
aspect	fixed
dashed	0
fillColor	#3334B9
fontSize	12
fontStyle	0
gradientColor	#4D72F3
gradientDirection	north
html	1
outlineConnect	0
resIcon	mxgraph.aws4.neptune
shape	mxgraph.aws4.resourceIcon
sketch	0
strokeColor	#ffffff
verticalAlign	top
verticalLabelPosition	bottom

Vertex size:

attribute	value
width	78
height	78

Full XML dump:

<mxfile host="multicloud-diagrams" agent="PIP package multicloud-diagrams. Generate resources in draw.io compatible format for Cloud infrastructure. Copyrights @ Roman Tsypuk 2023. MIT license." type="MultiCloud">
    <diagram id="diagram_1" name="AWS components">
        <mxGraphModel dx="1015" dy="661" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="850" pageHeight="1100" math="0" shadow="1">
            <root>
                <mxCell id="0"/>
                <mxCell id="1" parent="0"/>
                <mxCell id="vertex:neptune:arn:aws:rds:us-east-2:123456789012:db:my-neptune-instance-1" value="&lt;b&gt;Name&lt;/b&gt;: UsersGraph&lt;BR&gt;&lt;b&gt;ARN&lt;/b&gt;: arn:aws:rds:us-east-2:123456789012:db:my-neptune-instance-1&lt;BR&gt;-----------&lt;BR&gt;&lt;b&gt;data&lt;/b&gt;: 96000&lt;BR&gt;&lt;b&gt;BackupRetentionPeriod&lt;/b&gt;: 123&lt;BR&gt;&lt;b&gt;CharacterSetName&lt;/b&gt;: UTF-8&lt;BR&gt;&lt;b&gt;DatabaseName&lt;/b&gt;: UsersGraph&lt;BR&gt;&lt;b&gt;Endpoint&lt;/b&gt;: my-neptune-instance-1.cluster-ro-123456789012.us-east-1.neptune.amazonaws.com:8182&lt;BR&gt;&lt;b&gt;ReaderEndpoint&lt;/b&gt;: my-neptune-instance-1.cluster-ro-123456789012.us-east-1.neptune.amazonaws.com:8182&lt;BR&gt;&lt;b&gt;MultiAZ&lt;/b&gt;: True&lt;BR&gt;&lt;b&gt;Engine&lt;/b&gt;: Neptune&lt;BR&gt;&lt;b&gt;EngineVersion&lt;/b&gt;: v8&lt;BR&gt;&lt;b&gt;StorageEncrypted&lt;/b&gt;: True&lt;BR&gt;&lt;b&gt;IAMDatabaseAuthenticationEnabled&lt;/b&gt;: True&lt;BR&gt;&lt;b&gt;CopyTagsToSnapshot&lt;/b&gt;: True&lt;BR&gt;&lt;b&gt;DeletionProtection&lt;/b&gt;: False&lt;BR&gt;&lt;b&gt;CrossAccountClone&lt;/b&gt;: False" style="sketch=0;outlineConnect=0;gradientColor=#4D72F3;gradientDirection=north;fillColor=#3334B9;strokeColor=#ffffff;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;shape=mxgraph.aws4.resourceIcon;resIcon=mxgraph.aws4.neptune;" parent="1" vertex="1">
                    <mxGeometry width="78" height="78" as="geometry"/>
                </mxCell>
            </root>
        </mxGraphModel>
    </diagram>
</mxfile>

drawio file:

Download generated neptune.drawio:

Download
