Amazon Chime Voice Connector

New (v0.3.32)

Table of contents

1. Node Type: chime_voice_connector
2. Rendering:
3. Code Snippet:
4. drawio chime_voice_connector vertex:
5. Advanced for Geeks:
   1. Style:
   2. Vertex size:
   3. Full XML dump:
   4. drawio file:

---

Node Type: chime_voice_connector

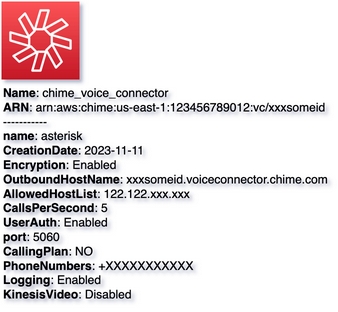

Rendering:

Code Snippet:

# given
mcd = MultiCloudDiagrams()

# when
chime_arn = 'arn:aws:chime:us-east-1:123456789012:vc/xxxsomeid'

metadata = {
    'name': 'asterisk',
    'CreationDate': '2023-11-11',
    'Encryption': "Enabled",
    'OutboundHostName': "xxxsomeid.voiceconnector.chime.com",
    'AllowedHostList': "122.122.xxx.xxx",
    'CallsPerSecond': "5",
    'UserAuth': "Enabled",
    'port': '5060',
    'CallingPlan': 'NO',
    'PhoneNumbers': '+XXXXXXXXXXX',
    'Logging': 'Enabled',
    'KinesisVideo': 'Disabled'
}

mcd.add_vertex(node_id=chime_arn, node_name='chime_voice_connector', node_type='chime_voice_connector', metadata=metadata)
