Map of Records

New (v0.3.12)

Table of contents

  1. Node Type: map
  2. Rendering:
  3. Code Snippet:
  4. drawio map vertex:
  5. Advanced for Geeks:
    1. Style:
    2. Full XML dump:
    3. drawio file:

Record is divided with ‘:’ into key/value pairs. Each KEY is highlighted with bold font syntax.

Node Type: map

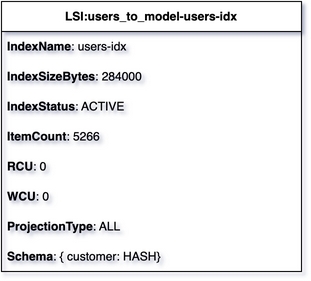

Rendering:

lambda

Code Snippet:

# given
mcd = MultiCloudDiagrams()
map = {
    'IndexName': 'users-idx',
    'IndexSizeBytes': '284000',
    'IndexStatus': 'ACTIVE',
    'ItemCount': '5266',
    'RCU': '0',
    'WCU': '0',
    'ProjectionType': 'ALL',
    'Schema': '{ customer: HASH}'
}

# when
mcd.add_map(table_name='LSI:users_to_model-users-idx', key_value_pairs=map)

drawio map vertex:

<mxCell id="vertex:LSI:users_to_model-users-idx:list" parent="1" vertex="1">
    <mxGeometry width="300" height="270" as="geometry"/>
</mxCell>

Advanced for Geeks:

Style:

style="swimlane;fontStyle=0;childLayout=stackLayout;horizontal=1;startSize=30;horizontalStack=0;resizeParent=1;resizeParentMax=0;resizeLast=0;collapsible=1;marginBottom=0;whiteSpace=wrap;html=1;"
attributevalue
childLayoutstackLayout
collapsible1
fontStyle0
horizontal1
horizontalStack0
html1
marginBottom0
resizeLast0
resizeParent1
resizeParentMax0
startSize30
swimlane
whiteSpacewrap

Full XML dump:

<mxfile host="multicloud-diagrams" agent="PIP package multicloud-diagrams. Generate resources in draw.io compatible format for Cloud infrastructure. Copyrights @ Roman Tsypuk 2023. MIT license." type="MultiCloud">
    <diagram id="diagram_1" name="AWS components">
        <mxGraphModel dx="1015" dy="661" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="850" pageHeight="1100" math="0" shadow="1">
            <root>
                <mxCell id="0"/>
                <mxCell id="1" parent="0"/>
                <mxCell id="vertex:LSI:users_to_model-users-idx:list" value="&lt;b&gt;LSI:users_to_model-users-idx&lt;/b&gt;" style="swimlane;fontStyle=0;childLayout=stackLayout;horizontal=1;startSize=30;horizontalStack=0;resizeParent=1;resizeParentMax=0;resizeLast=0;collapsible=1;marginBottom=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
                    <mxGeometry width="300" height="270" as="geometry"/>
                </mxCell>
                <mxCell id="vertex:LSI:users_to_model-users-idx:row:0" value="&lt;b&gt;IndexName&lt;/b&gt;: users-idx" style="text;strokeColor=none;fillColor=none;align=left;verticalAlign=middle;spacingLeft=4;spacingRight=4;overflow=hidden;portConstraint=eastwest;rotatable=0;whiteSpace=wrap;html=1;" parent="vertex:LSI:users_to_model-users-idx:list" vertex="1">
                    <mxGeometry width="300" height="30" y="30" as="geometry"/>
                </mxCell>
                <mxCell id="vertex:LSI:users_to_model-users-idx:row:1" value="&lt;b&gt;IndexSizeBytes&lt;/b&gt;: 284000" style="text;strokeColor=none;fillColor=none;align=left;verticalAlign=middle;spacingLeft=4;spacingRight=4;overflow=hidden;portConstraint=eastwest;rotatable=0;whiteSpace=wrap;html=1;" parent="vertex:LSI:users_to_model-users-idx:list" vertex="1">
                    <mxGeometry width="300" height="30" y="60" as="geometry"/>
                </mxCell>
                <mxCell id="vertex:LSI:users_to_model-users-idx:row:2" value="&lt;b&gt;IndexStatus&lt;/b&gt;: ACTIVE" style="text;strokeColor=none;fillColor=none;align=left;verticalAlign=middle;spacingLeft=4;spacingRight=4;overflow=hidden;portConstraint=eastwest;rotatable=0;whiteSpace=wrap;html=1;" parent="vertex:LSI:users_to_model-users-idx:list" vertex="1">
                    <mxGeometry width="300" height="30" y="90" as="geometry"/>
                </mxCell>
                <mxCell id="vertex:LSI:users_to_model-users-idx:row:3" value="&lt;b&gt;ItemCount&lt;/b&gt;: 5266" style="text;strokeColor=none;fillColor=none;align=left;verticalAlign=middle;spacingLeft=4;spacingRight=4;overflow=hidden;portConstraint=eastwest;rotatable=0;whiteSpace=wrap;html=1;" parent="vertex:LSI:users_to_model-users-idx:list" vertex="1">
                    <mxGeometry width="300" height="30" y="120" as="geometry"/>
                </mxCell>
                <mxCell id="vertex:LSI:users_to_model-users-idx:row:4" value="&lt;b&gt;RCU&lt;/b&gt;: 0" style="text;strokeColor=none;fillColor=none;align=left;verticalAlign=middle;spacingLeft=4;spacingRight=4;overflow=hidden;portConstraint=eastwest;rotatable=0;whiteSpace=wrap;html=1;" parent="vertex:LSI:users_to_model-users-idx:list" vertex="1">
                    <mxGeometry width="300" height="30" y="150" as="geometry"/>
                </mxCell>
                <mxCell id="vertex:LSI:users_to_model-users-idx:row:5" value="&lt;b&gt;WCU&lt;/b&gt;: 0" style="text;strokeColor=none;fillColor=none;align=left;verticalAlign=middle;spacingLeft=4;spacingRight=4;overflow=hidden;portConstraint=eastwest;rotatable=0;whiteSpace=wrap;html=1;" parent="vertex:LSI:users_to_model-users-idx:list" vertex="1">
                    <mxGeometry width="300" height="30" y="180" as="geometry"/>
                </mxCell>
                <mxCell id="vertex:LSI:users_to_model-users-idx:row:6" value="&lt;b&gt;ProjectionType&lt;/b&gt;: ALL" style="text;strokeColor=none;fillColor=none;align=left;verticalAlign=middle;spacingLeft=4;spacingRight=4;overflow=hidden;portConstraint=eastwest;rotatable=0;whiteSpace=wrap;html=1;" parent="vertex:LSI:users_to_model-users-idx:list" vertex="1">
                    <mxGeometry width="300" height="30" y="210" as="geometry"/>
                </mxCell>
                <mxCell id="vertex:LSI:users_to_model-users-idx:row:7" value="&lt;b&gt;Schema&lt;/b&gt;: { customer: HASH}" style="text;strokeColor=none;fillColor=none;align=left;verticalAlign=middle;spacingLeft=4;spacingRight=4;overflow=hidden;portConstraint=eastwest;rotatable=0;whiteSpace=wrap;html=1;" parent="vertex:LSI:users_to_model-users-idx:list" vertex="1">
                    <mxGeometry width="300" height="30" y="240" as="geometry"/>
                </mxCell>
            </root>
        </mxGraphModel>
    </diagram>
</mxfile>

drawio file:

Download generated map.drawio:

Download
