IAM Policy

New (v0.2.0)

Table of contents

1. Node Type: iam_policy
2. Rendering:
3. Code Snippet:
4. drawio iam_policy vertex:
5. Advanced for Geeks:
   1. Style:
   2. Vertex size:
   3. Full XML dump:
   4. drawio file:

---

Node Type: iam_policy

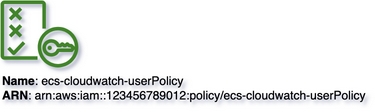

Rendering:

Code Snippet:

# given
mcd = MultiCloudDiagrams()

# when
iam_policy_arn = 'arn:aws:iam::123456789012:policy/ecs-cloudwatch-userPolicy'
mcd.add_vertex(node_id=iam_policy_arn, node_name='ecs-cloudwatch-userPolicy', node_type='iam_policy')

drawio iam_policy vertex:

<mxCell id="vertex:iam_policy:arn:aws:iam::123456789012:policy/ecs-cloudwatch-userPolicy" parent="1" vertex="1">
    <mxGeometry width="78" height="67" as="geometry"/>
</mxCell>

---

Advanced for Geeks:

Style:

style="sketch=0;outlineConnect=0;gradientColor=none;fillColor=#3F8624;strokeColor=none;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;pointerEvents=1;shape=mxgraph.aws4.policy;"

attribute	value
align	left
aspect	fixed
dashed	0
fillColor	#3F8624
fontSize	12
fontStyle	0
gradientColor	none
html	1
outlineConnect	0
pointerEvents	1
shape	mxgraph.aws4.policy
sketch	0
strokeColor	none
verticalAlign	top
verticalLabelPosition	bottom

Vertex size:

attribute	value
width	78
height	67

Full XML dump:

<mxfile host="multicloud-diagrams" agent="PIP package multicloud-diagrams. Generate resources in draw.io compatible format for Cloud infrastructure. Copyrights @ Roman Tsypuk 2023. MIT license." type="MultiCloud">
    <diagram id="diagram_1" name="AWS components">
        <mxGraphModel dx="1015" dy="661" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="850" pageHeight="1100" math="0" shadow="1">
            <root>
                <mxCell id="0"/>
                <mxCell id="1" parent="0"/>
                <mxCell id="vertex:iam_policy:arn:aws:iam::123456789012:policy/ecs-cloudwatch-userPolicy" value="&lt;b&gt;Name&lt;/b&gt;: ecs-cloudwatch-userPolicy&lt;BR&gt;&lt;b&gt;ARN&lt;/b&gt;: arn:aws:iam::123456789012:policy/ecs-cloudwatch-userPolicy" style="sketch=0;outlineConnect=0;gradientColor=none;fillColor=#3F8624;strokeColor=none;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;pointerEvents=1;shape=mxgraph.aws4.policy;" parent="1" vertex="1">
                    <mxGeometry width="78" height="67" as="geometry"/>
                </mxCell>
            </root>
        </mxGraphModel>
    </diagram>
</mxfile>

drawio file:

Download generated iam_policy.drawio:

Download
