Certificate Manager

New (v0.3.14)

Table of contents

  1. Node Type: certificate_manager
  2. Rendering:
  3. Code Snippet:
  4. drawio certificate_manager vertex:
  5. Advanced for Geeks:
    1. Style:
    2. Vertex size:
    3. Full XML dump:
    4. drawio file:

Node Type: certificate_manager

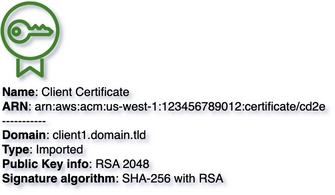

Rendering:

lambda

Code Snippet:

# given
mcd = MultiCloudDiagrams()

# when
cert_manager_arn = 'arn:aws:acm:us-west-1:123456789012:certificate/cd2e'
cert_manager_name = 'Client Certificate'
metadata = {
    'Domain': 'client1.domain.tld',
    'Type': 'Imported',
    'Public Key info': 'RSA 2048',
    'Signature algorithm': 'SHA-256 with RSA'
}
mcd.add_vertex(node_id=cert_manager_arn, node_name=cert_manager_name, node_type='certificate_manager', metadata=metadata)

drawio certificate_manager vertex:

<mxCell id="vertex:certificate_manager:arn:aws:acm:us-west-1:123456789012:certificate/cd2e" parent="1" vertex="1">
    <mxGeometry width="59" height="78" as="geometry"/>
</mxCell>

Advanced for Geeks:

Style:

style="sketch=0;outlineConnect=0;gradientColor=none;fillColor=#3F8624;strokeColor=none;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;pointerEvents=1;shape=mxgraph.aws4.certificate_manager;"
attributevalue
alignleft
aspectfixed
dashed0
fillColor#3F8624
fontSize12
fontStyle0
gradientColornone
html1
outlineConnect0
pointerEvents1
shapemxgraph.aws4.certificate_manager
sketch0
strokeColornone
verticalAligntop
verticalLabelPositionbottom

Vertex size:

attributevalue
width59
height78

Full XML dump:

<mxfile host="multicloud-diagrams" agent="PIP package multicloud-diagrams. Generate resources in draw.io compatible format for Cloud infrastructure. Copyrights @ Roman Tsypuk 2023. MIT license." type="MultiCloud">
    <diagram id="diagram_1" name="AWS components">
        <mxGraphModel dx="1015" dy="661" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="850" pageHeight="1100" math="0" shadow="1">
            <root>
                <mxCell id="0"/>
                <mxCell id="1" parent="0"/>
                <mxCell id="vertex:certificate_manager:arn:aws:acm:us-west-1:123456789012:certificate/cd2e" value="&lt;b&gt;Name&lt;/b&gt;: Client Certificate&lt;BR&gt;&lt;b&gt;ARN&lt;/b&gt;: arn:aws:acm:us-west-1:123456789012:certificate/cd2e&lt;BR&gt;-----------&lt;BR&gt;&lt;b&gt;Domain&lt;/b&gt;: client1.domain.tld&lt;BR&gt;&lt;b&gt;Type&lt;/b&gt;: Imported&lt;BR&gt;&lt;b&gt;Public Key info&lt;/b&gt;: RSA 2048&lt;BR&gt;&lt;b&gt;Signature algorithm&lt;/b&gt;: SHA-256 with RSA" style="sketch=0;outlineConnect=0;gradientColor=none;fillColor=#3F8624;strokeColor=none;dashed=0;verticalLabelPosition=bottom;verticalAlign=top;align=left;html=1;fontSize=12;fontStyle=0;aspect=fixed;pointerEvents=1;shape=mxgraph.aws4.certificate_manager;" parent="1" vertex="1">
                    <mxGeometry width="59" height="78" as="geometry"/>
                </mxCell>
            </root>
        </mxGraphModel>
    </diagram>
</mxfile>

drawio file:

Download generated certificate_manager.drawio:

Download
